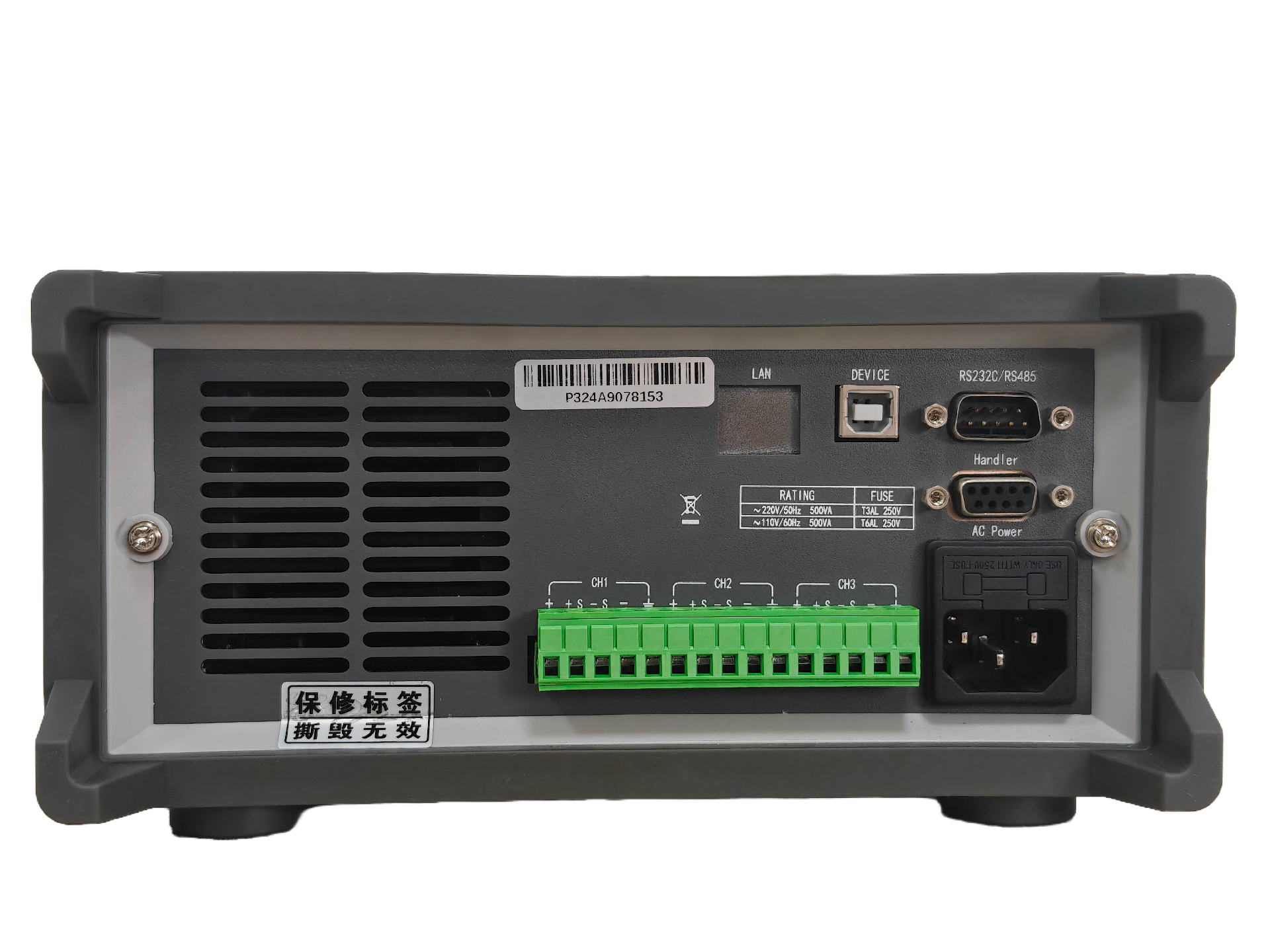

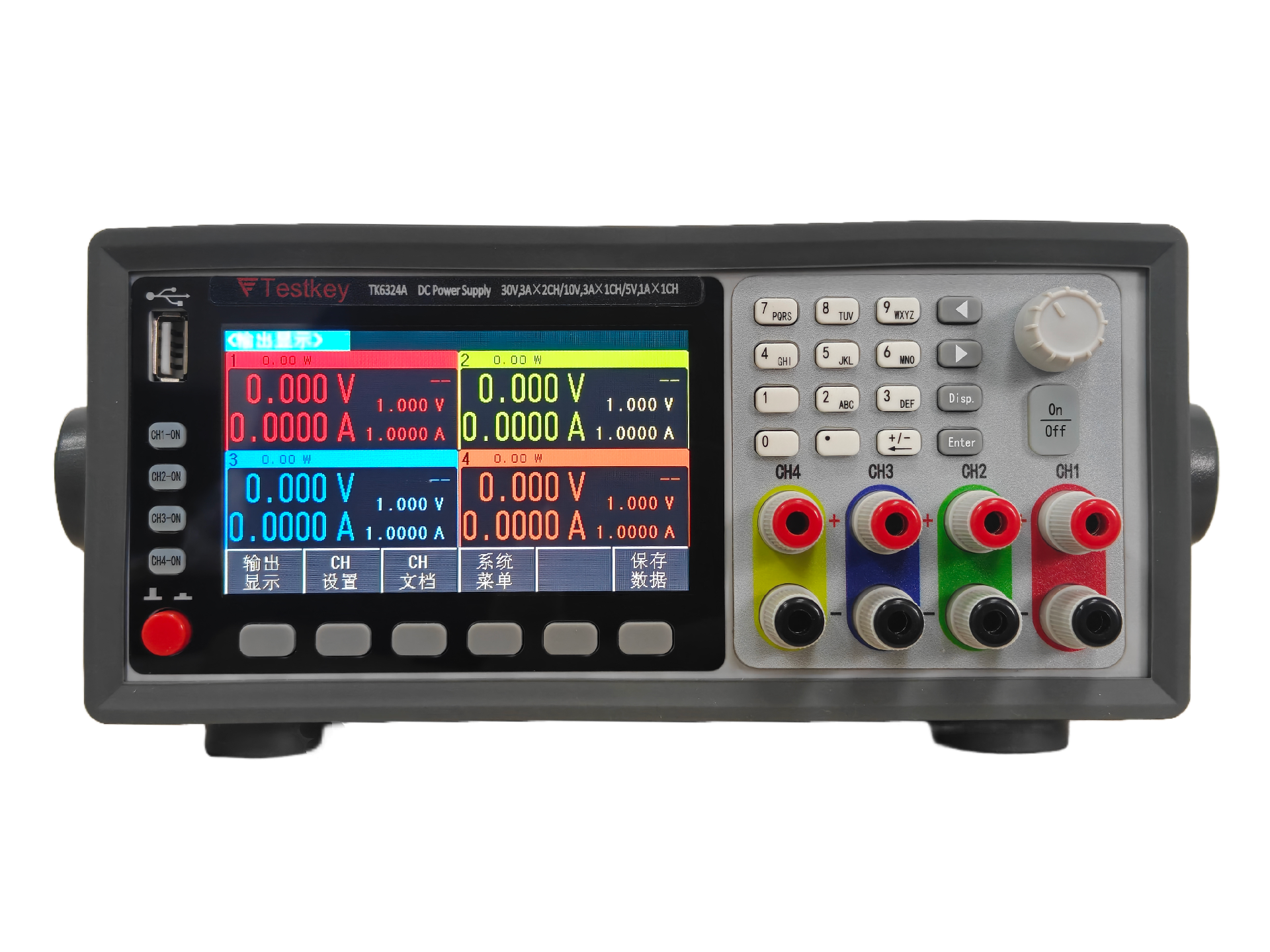

TK6300系列可编程线性直流电源

Name: TK6300系列 可编程线性直流电源
Brand: TestKey
SKU: TK6332A / TK6333A
Availability: InStock

型号：TK6332A / TK6333A

分类国货精品 > TestKey > 可编程线性直流电源摘要远端补偿功能测量研发与设计验证通用测试生产线工作台常规测试维修自动化设备集成测试太阳能光伏模拟测试新能源汽车模拟测试

参数		TK6324A				TK6322A
额定输出	通道	CH1	CH2	CH3	CH4	CH1	CH2	CH3
	电压	0-30V	0-30V	0-10V	0-5V	0-30V	0-30V	0-6V
	电流	0-3A	0-3A	0-3A	0-1A	0-3A	0-3A	0-5A
	功率	90W	90W	30W	5W	90W	90W	30W
负载调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
电源调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
设定值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV	1mV
	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
回读值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV	1mV
	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
设定值精度 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
回读值分辨率 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
纹波与噪声 (20Hz-2MHz)	电压(VPP)	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤3mVp-p	≤4mVp-p
	电压(VRMS)	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms
	电流	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤5mArms
串联同步误差		≤0.2%+10mA	≤0.2%+10mA	≤0.2%+10mA	≤0.2%+10mA	≤0.05%+10mA	≤0.05%+10mA	≤0.05%+10mA
并联设定值精度	电压	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+5mV	≤0.02%+5mV	≤0.02%+5mV
	电流	≤0.2%+20mA	≤0.2%+20mA	≤0.2%+20mA	≤0.2%+20mA	≤0.1%+20mA	≤0.1%+20mA	≤0.1%+20mA
记忆	回调储存	40组设定文件/通道
定时器	功能	定时关闭输出
	时间设置	0.1秒～99999.9秒
	解析度	0.1秒
工作温度		0℃～40℃

型号		TK6332A			TK6333A
额定输出	通道	CH1	CH2	CH3	CH1	CH2	CH3
	电压	0-30V	0-30V	0-6V	0-60V	0-60V	0-6V
	电流	0-6A	0-6A	0-5A	0-3A	0-3A	0-5A
	功率	180W	180W	30W	180W	180W	30W
负载调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
负载调整率±(%输出+偏置)	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
电源调整率±(%输出+偏置)	电压	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV	≤0.01%+3mV
电源调整率±(%输出+偏置)	电流	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA	≤0.1%+3mA
设定值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV
设定值分辨率	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
回读值分辨率	电压	1mV	1mV	1mV	1mV	1mV	1mV
回读值分辨率	电流	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA	0.1mA
设定值精度 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
设定值精度 (25℃±5℃)	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
回读值分辨率 (25℃±5℃)	电压	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV	≤0.03%+10mV
回读值分辨率 (25℃±5℃)	电流	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA	≤0.1%+5mA
纹波与噪声 (20Hz-2MHz)	电压(VPP)	≤4mVp-p	≤4mVp-p	≤4mVp-p	≤4mVp-p	≤4mVp-p	≤4mVp-p
	电压(VRMS)	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms	≤1mVrms
	电流	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤3mArms	≤5mArms
串联同步误差		≤0.2%+10mA	≤0.2%+10mA	≤0.2%+10mA	≤0.05%+10mA	≤0.05%+10mA	≤0.05%+10mA
并联设定值精度	电压	≤0.02%+5mV	≤0.02%+5mV	≤0.02%+5mV	≤0.02%+10mV	≤0.02%+10mV	≤0.02%+10mV
并联设定值精度	电流	≤0.2%+30mA	≤0.2%+30mA	≤0.2%+30mA	≤0.1%+30mA	≤0.1%+30mA	≤0.1%+30mA
记忆	回调储存	40组设定文件/通道
定时器	功能	定时关闭输出
	时间设置	0.1秒～99999.9秒
	解析度	0.1秒
工作温度		0℃～40℃
标配附件		TSK107 三芯电源线
